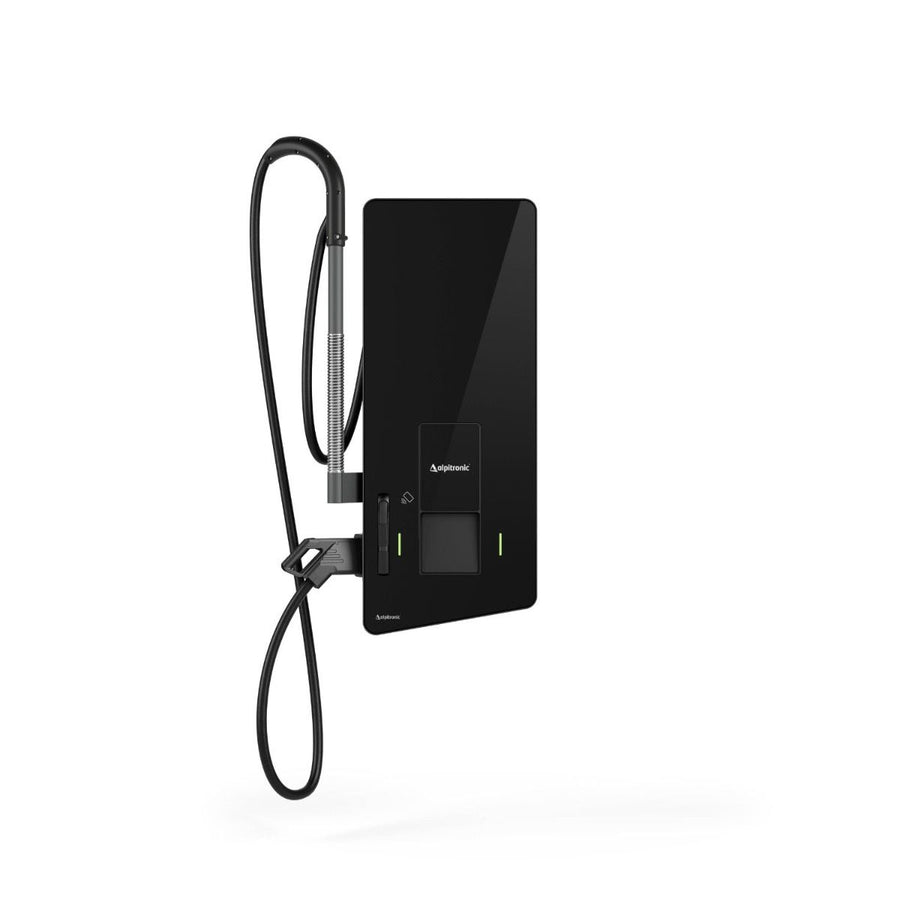

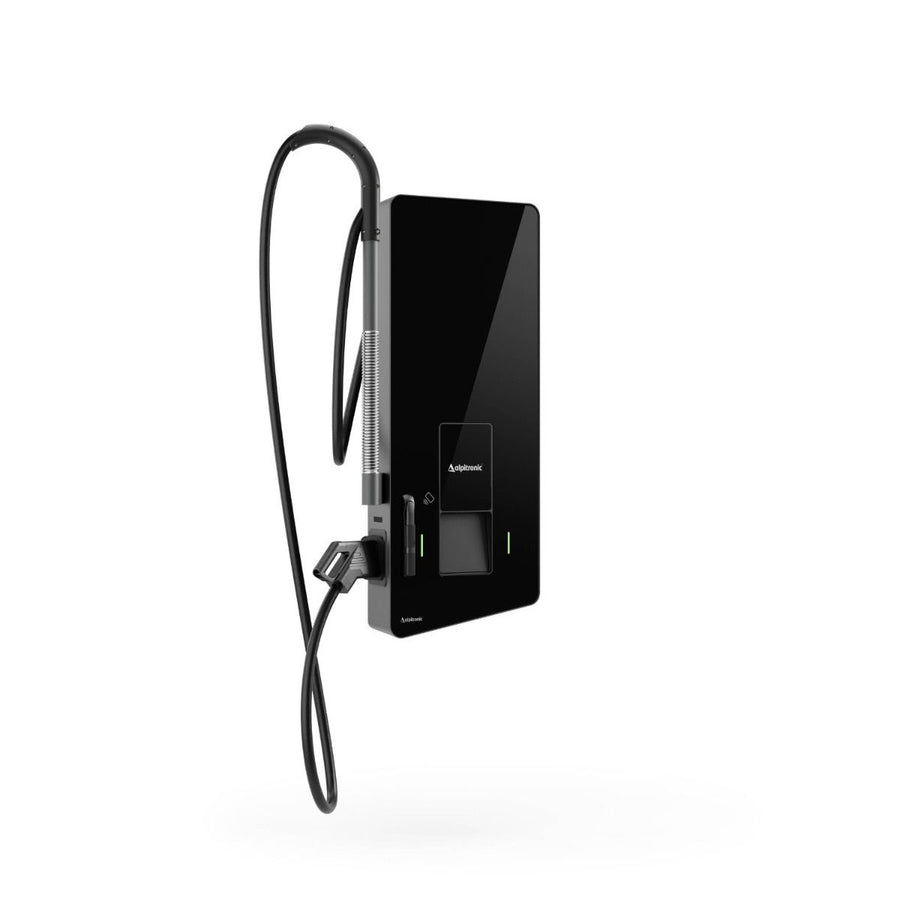

Alpitronic HYC50 DC Wallbox (1LP)

(1 × 50 kW, 4.5 m CCS cable, RFID/ISO 15118 (PnC), measurement and calibration compliant, LAN/SIM, OCPP 1.6)
Price on request (project-based pricing)
Technical Information
  • Up to 50 kW charging power
  • 1 charging outlet for 1 × 50 kW charging power
  • Includes one 4.5 m cable with CCS connector and cable management system
  • Measurement and calibration-compliant charging station for billing your charging sessions
  • Lock and unlock the charging station with RFID cards or start charging via Plug & Charge (ISO 15118) with automatic vehicle recognition
  • Optional payment terminal
  • Data communication via LAN or mobile data (SIM card is generally provided by your backend provider)
  • Communicates via OCPP 1.6 with various backend systems
  • Looking for further advice on the DC wallbox? Contact us – we will be happy to assist you
  • Compatible with charging and energy management systems
● Custom Solution? Don't hesitate to reach out to us.
Beschreibung des Bildes
Beschreibung des Bildes

Often bought with

No products found

Alpitronic Hypercharger HYC50 DC Wallbox (1LP) — Single-Point 50 kW DC Fast Charging

The Alpitronic Hypercharger HYC50 DC Wallbox in the single charging point configuration (1LP) concentrates the full 50 kW output on one vehicle at a time — delivering the complete available power to a single CCS2 connection with a continuous charging current of 150 A. Compared to the dual-port variant, the 1LP version offers a more compact footprint, lower acquisition cost and a simplified installation process — making it the right choice for locations where simultaneous multi-vehicle charging is not a priority.

The station is available with charging cables of 4.5, 7.5 and 10 metres, providing genuine flexibility for different parking and forecourt layouts. The DC output voltage range of 150 V to 1,000 V ensures compatibility with all current electric vehicle platforms. With a weight from 95 kg and compact dimensions of 520 × 1,300 × 250 mm, the HYC50 1LP can be installed directly on a wall or on an optional free-standing pedestal with concrete foundation — suitable for both indoor and outdoor environments thanks to its IP55 protection rating and operating temperature range of -30°C to +55°C.


Alpitronic HYC50 DC Wallbox (1LP) — Simple, Efficient Single-Point DC Charging for Businesses and Fleets

The HYC50 1LP is the cost-efficient entry point into professional DC fast charging — engineered for businesses, fleet operators, hospitality venues and smaller public charging locations that require reliable 50 kW DC output at a single charging point. Its straightforward single-connector design reduces both hardware cost and operational complexity without compromising on charging performance, backend connectivity or compliance.

Authentication is supported via RFID, Plug & Charge (ISO 15118) and QR code. An optional integrated payment terminal is available for operators who require direct card payment functionality. The station supports OCPP 1.6J and 2.0.1 and integrates with all common backend systems via LAN or mobile data connection. The HYC50 1LP meets the technical requirements of multiple public funding programmes — including the German BMDV funding scheme for commercial and heavy-duty vehicle charging infrastructure — making it an eligible option for operators seeking co-financing for their charging investment.

V2G-Ready Single-Point Charging for Smart Energy Infrastructure

The Alpitronic HYC50 DC Wallbox (1LP) goes beyond standard fast charging — it supports bidirectional V2G charging (Vehicle-to-Grid), allowing the connected vehicle to feed stored energy back into a local energy management system when needed. For operators combining EV charging with photovoltaic generation or battery storage, the HYC50 1LP becomes an active part of a broader energy optimisation strategy — reducing grid dependency and lowering energy costs.

With a power factor above 0.99 at full load and a THDi of under 5%, the station places minimal strain on the local grid — a key advantage for sites with limited grid capacity. Integrated surge protection (SPD Type 1 + 2 + 3) and a standby power consumption of just 25 W ensure efficient, low-maintenance operation.

The HYC50 1LP is fully ISO 15118 ready — supporting Plug & Charge for fully automated vehicle authentication and billing without driver interaction. For operators building a charging network that needs to remain competitive long-term, the HYC50 1LP delivers the technical foundation for smart, energy-integrated EV charging in a compact, wall-mountable form factor.


Have questions about the Alpitronic HYC50 (1LP) EV charger? Find the answers here.

What distinguishes the Alpitronic HYC50 1LP from the dual-port version — and when is it the right choice?

The Alpitronic HYC50 1LP features a single charging point delivering the full 50 kW output — the entire available DC power is dedicated to one vehicle at a time. Compared to the two-port variant, the 1LP is more compact, lighter and more cost-efficient to purchase and install. It is the ideal solution for locations with low to moderate charging demand where simultaneous multi-vehicle charging is rarely required — such as restaurant car parks, smaller retail sites, compact corporate parking facilities or residential complexes with limited EV adoption.

Is the Alpitronic HYC50 1LP AFIR-compliant and is a card payment terminal required?

With Series 2, Alpitronic introduced a 49.9 kW variant of the HYC50 1LP that is fully AFIR-compliant. Under the European Alternative Fuels Infrastructure Regulation (AFIR), charging stations rated at 50 kW or above must be equipped with a card payment terminal. The 49.9 kW variant falls just below this threshold — allowing operators to forego the cost of an integrated card terminal while still offering calibration-compliant charging sessions. For sites that require card payment functionality, the full 50 kW version remains available with an optional integrated payment terminal.

What installation options does the Alpitronic HYC50 1LP offer and how complex is the installation process?

The HYC50 1LP offers maximum installation flexibility: it can be mounted directly on a wall or installed on a free-standing pedestal — optionally with a concrete foundation. Weighing from 95 kg with compact dimensions of 520 × 1,300 × 250 mm (W × H × D), it is significantly more manageable than full-size fast charging columns. Installation requires a three-phase grid connection with a maximum input current of 90 A and is suitable for both indoor and outdoor environments — backed by an IP55 protection rating and an operating temperature range of -30°C to +55°C.

Which funding programmes are available for the Alpitronic HYC50 1LP?

The Alpitronic HYC50 1LP meets the technical requirements of several public funding programmes — including the German Federal Ministry for Digital and Transport (BMDV) funding call for heavy commercial vehicle charging infrastructure. As a calibration-compliant, OCPP-compatible DC charging station delivering a minimum of 50 kW, it meets the baseline eligibility criteria for numerous national and European funding schemes for commercial EV charging infrastructure. Operators should review the current funding guidelines of their respective national or regional authority.
